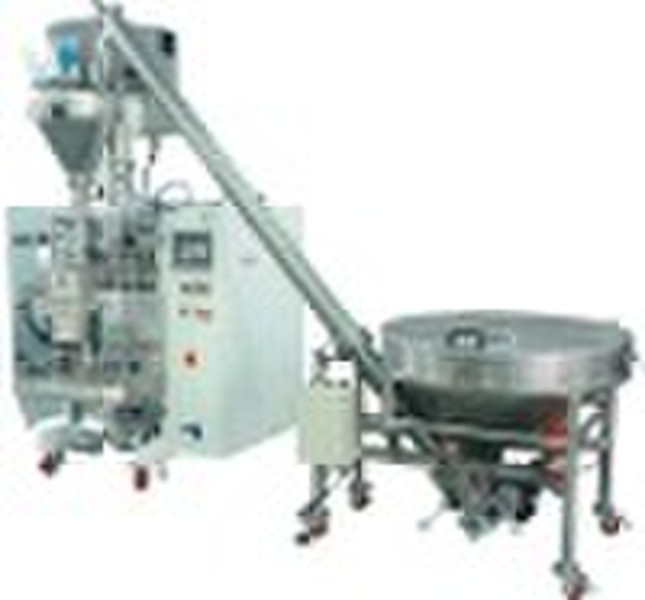

Vertical Filling Film Sealing Machine

Professional Soft Bagger>>Reliable PLC control,Precision servo system,Imported bearing,International brand electrical equipments to ensure 24 hours continuant work .>>Friendly touch screen and HMI, it stores technical parameters of various products, reset unnecessary when changing products.>>Film Pulling driven by servo motor to control length precisely and stablity.>>Horizontal sealing driven by servo motor to make no strike and low noise when running. The pressure of sealing could be adjusted at will to suit for any thickness & structure of the film in any complexity>>Intellectual clamp checking system on horizontal sealing to ensure safety.>>It with self-diagnose function, automatic alarm and trouble shooting instruction.>>Suitable for pillow bag, gusseted bag, chain bags, and pothook bag.Optional Components:*Printer*Gusset*Gas Flushing*Pothook holes punch*Chain Bag cuttingApplication:Suitable for product of irregular shape (such as powder, grain orchunkc) and pastes. Suitable for any complexed and PE films. ModelVFFS-420VFFS-520VFFS-620VFFS-720Packing Speed 25-70bags/min25-70bags/min20-60bags/min20-60bags/minWidth≤200mm≤245mm≤295mm≤345mmLength≤300mm≤350mm≤400mm≤450mmAir Consumption0.6MPa ≤0.3m3/minPower3.0KW3.5KW4.0KW4.5KWPower Source/Single-phase 220V, 50HzMachine Weight450Kg550650750Overall Dimensions1200L*1050W*1300Hmm1300L*1100W*1450Hmm1400L*1200W*1500Hmm1500L*1300W*1700Hmm
